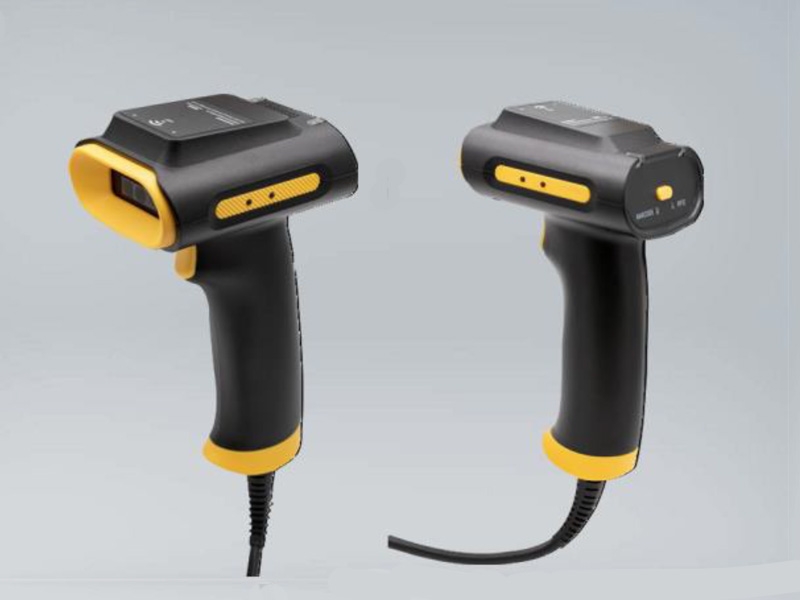

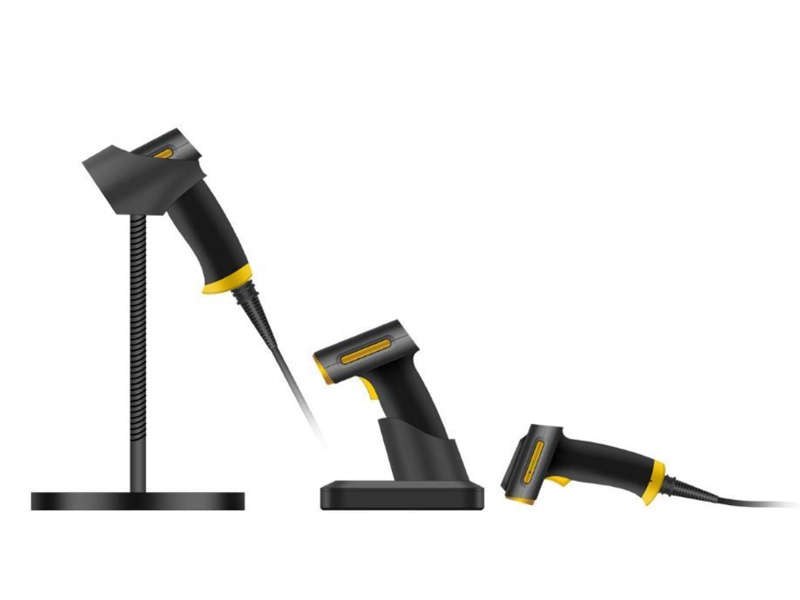

HLH-R160 手持式UHF讀取器
HLH-R160是一款功能強大的UHF掃描器，支援UHF RFID和2D掃描。採用自主研發的超高頻 RFID 模組基於 Impinj E310 晶片，提供出色的單標籤讀/寫性能，SR160可以快速準確地讀取市場上的各種電子標籤，最大讀取範圍超過30cm。 HLH-R160可廣泛應用於零售連鎖、庫存管理、倉儲物流、製造等應用場景
產品說明
| Physical Characteristics |
| Material | Plastic |
| Keypad | power key / scan key |
| Button | UHF 2D UHF or 2D |
| LED Indicator | Function 1 for UHF, 1 for 2D |
| Status 2 in total, 1 for UHF, 1 for 2D | |
| Power 1 | |
| Bluetooth 1 | |
| Buzzer | Voice prompt |
| Ethernet Interface | RJ45 interface HID USB |
| Communication |
| Bluetooth | Bluetooth 4.2 (Optional) |
| User Environment |
| Dropping | 1.2m |
| Sealing | IP65 per IEC sealing specifications |
| Data Collection |
| Barcode Scanning |
| Scan Engine | 2D Scanner |
| Min.Resolution | Code 39 – 4mil UPC – 7.8mil (60%)、PDF417 – 5mil Datamatrix – 5mil |
| UHF |
| Engine | CM-3N module based on Impinj E310 |
| Protocol | EPCglobal C1G2 (ISO18000-6C) |
| Frequency | 920-925MHz / 902-928MHz / 865-868MHz |
| Output Power | 1-25dBm |
| Output Power Precision | ±1dBm |
| Output Power Flatness | ±1dBm |
| Antenna | Circular Polarized Antenna |
| R/W range | >30cm (Tag Alien H3) |
| Accessories (Optional) |
| USB Cable | TYPE-A RJ45 |
| Power Supply | 5V 2A |
PDF下載 HLH-R160 (EPC) UHF Scanner Reader (1).pdf
