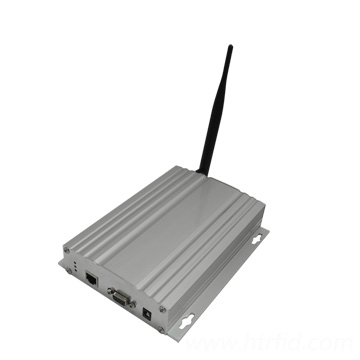

: F527 RFID 2.45Ghz Reader
Functions Support RS-232, 10M/100M Ethernet interface and customized interfaces Connect 5dBi omni-directional antenna outside Multi-group I/O ports, to control the functional mode of the reader/writer Command-trigger, set time-trigger and out-trigger suitable for customer's applications, Powerful API,Aluminum shell, high-tension, waterproofing IP55

RF Parameters
Operating Frequency	2.4-2.48GHz
Output Power	-30~0dBm (adjustable by software)
Sensitivity	-95dBm
Identification Angle	Omni-directional
Antenna Port	SMA
Communication Interfaces
Communication Interfaces	RS-232, 10/100M Adaptive Ethernet interfaces
Optional Interfaces	RS-485 interface, Wiegand 26/34 interfaces
Wireless module	GPRS or WIFI (optional)
I/O Port	2- channel relays output(optional), 2- channel trigger input(optional)
Firmware Upgrade	Support serial port
Application Software Platform	Provide development kit of API(C++ and C#)
Tag Operation
Tag Protocol	Private Protocol
Tag Operating Mode	Compatible with active and passive operating mode tags
Reading Range	0~100m radius (depend on the tag power output)
Identification Speed	200pcs/s (tag ID)
Anti-confliction	Identifying 300pcs tag at the same time
Mechanical & Electrical Performance
IP Rating	IP55
Power Supply	DC 5V
Power Consumption	300mW
Product Dimensions	190mm×120mm×40mm(excluding antenna)
Package Dimensions	320mm×226mm×133mm(excluding antenna)
Net Weight	0.6kg
Gross Weight	2kg
Operating Temperature	-40℃ ~ +60℃
Storage Temperature	-60℃ ~ +80℃
Humidity	5% ~ 95%(non-condensing)
Shock Resistance	10~500Hz, 100mm/15g, triaxial
