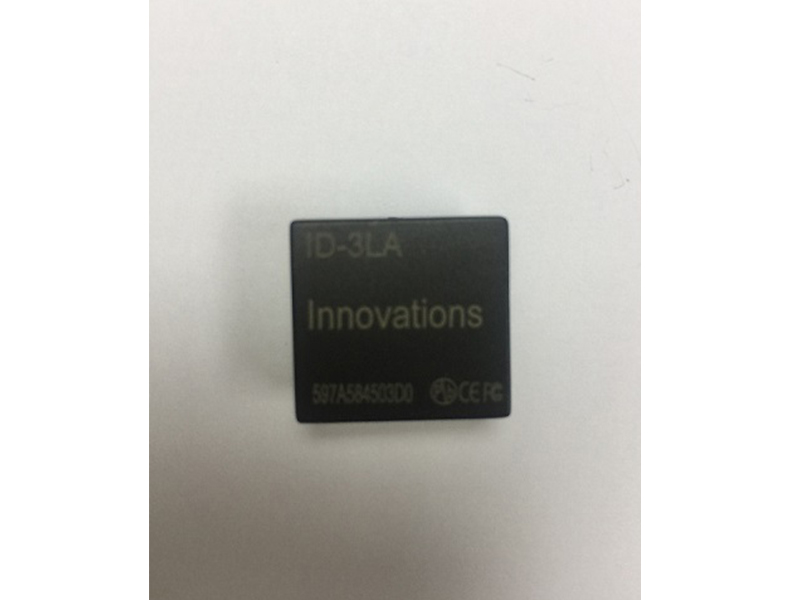

ID-3LA 125Khz RFID Reader Module

ID03-LA is small footprint 2.8-5.0volt reader modules that support ASCII, Wiegand26 and Magnetic ABA Track2 data formats. The modules are pin and function compatible with the ID2/12/20 series.

Parameter

ID-3LA, ID-12LA, ID-20LA

Frequency

125 kHz nominal Card Format EM 4001 or compatible

Read Range ID3

Up to 30 using suitable antenna using   ID-Innovations clamshell card @5v

Read Range ID12

Up to 12cm using ISO card, up to 18cm using   ID-Innovations clamshell card @5v

Read Range ID20

Up to 18cm using ISO card, up to 25cm using   ID-Innovations clamshell card @5v

Encoding

Manchester 64-bit, modulus 64

Power Requirement

+2.8 VDC thru +5 VDC @ 35mA ID-12LA, 45mA ID-20LA

RF I/O Output Current

+/- 200mA PKPK

Certification

CE, C-TICK, ROHS, FCC
