Product
RFID Reader
-
-

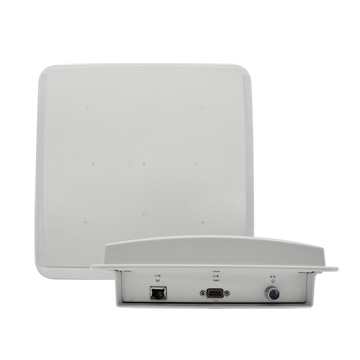

UHF-SAAT-1801 UHF Middle Range Integrated Reader
902-928MhzFCC, 866-868Mhz CE, equipped with 8dBi Circular antenna Support standard RS-232, 10M/100M Ethernet interfaces Build in Linux OS, Indy R2000 RFID Chip, fast and accurate reading rate Multi-reader operating under intensive environment Upgrade firmware online
RF Parameter | |
Operating Frequency | 860MHz - 920MHz, RF band customized (optional) |
Operation Mode | FHSS or fixed frequency |
Power output | +20dBm ~ +30dBm@50Ω load, 1dBm each step |
Antenna | Built-in 8dBi Circular Polarization antenna |
Communication Interfaces | RS-232,10/100M Ethernet |
Firmware Upgrade | Support serial port |
Application Software Platform | API(C++, C#) development kit (can be customized) |
Tag Operation | |
Tag Protocol | ISO18000-6B, EPC Class1 Gen2(ISO18000-6C) |
Reading Range | 0~8m |
Writing Range | 0~3m |
Mechanical& Electrical performance | |
Dimensions | 250mm×164mm×46mm(L×W×H) |
Weight | 1.91kg |
Power Supply | DC12V input, power adaptor |
Power Consumption | 2W(Stand by),10W(Working) |
Operating Temperature | -40°C~+60°C |
Humidity | 5%~95%(non-condensing) |
Waterproof | IP55 |
