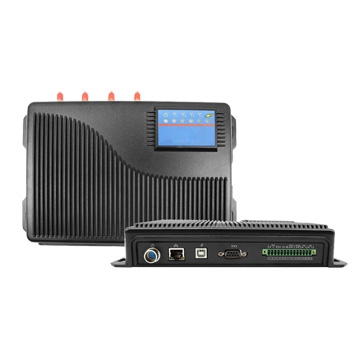

UHF-SAAT-F805S UHF 4-port Fixed Reader
902-928Mhz FCC, 866-868Mhz CE, other frequency selectable, Connect 4 antennas outside, SMA connector, Support standard RS-232, USB, Ethernet communication interfaces, Support PoE, Build in Linux OS, Indy R2000 RFID chip, fast and accurate reading rate, Multi-reader operating under intensive environment, Powerful API, Upgrade firmware online
RF Parameter | |
Architecture | ARM 9,Linux,64Mbyte RAM, 256Mbyte flash |
Operating Frequency | 860MHz - 920MHz, frequency band adjustable |
Operation Mode | FHSS or fixed frequency |
Power output | +20dBm ~ +30dBm@50Ω load, 1dBm each step |
Antenna ports | 4 SMA connector |
Communication Interfaces | RS-232, Ethernet, USB2.0 |
Expansion Interfaces | RS-485, Wiegand 26/34 |
Wireless Expansion Module | GPRS/GSM, WIFI 802.11module |
I/O Ports(Optional) | 4 Relay Output, 2 Trigger Input |
Firmware Upgrade | Support serial port |
Application Software Platform | API(C++, C#) development kit (can be customized) |
Tag Operation | |
Tag Protocol | EPC Class1 Gen2(ISO18000-6C) |
Reading Range | 0~15m(depends on antenna and tag) |
Reading Speed | >200pcs/s(EPC Class1 Gen2) |
Tag Identifying Accuracy | >99.9% |
Mechanical& Electrical performance | |
Dimensions | 250mm×164mm×46mm(L×W×H) |
Weight | <2Kg |
Power Supply | DC12V input, power adaptor; PoE optional |
Power Consumption | 2W(Stand by),10W(Working) |
Operating Temperature | -40°C~+60°C |
Humidity | 5%~95%(non-condensing) |
Waterproof | IP54 |
Reliability | MTBF≥10000h |
